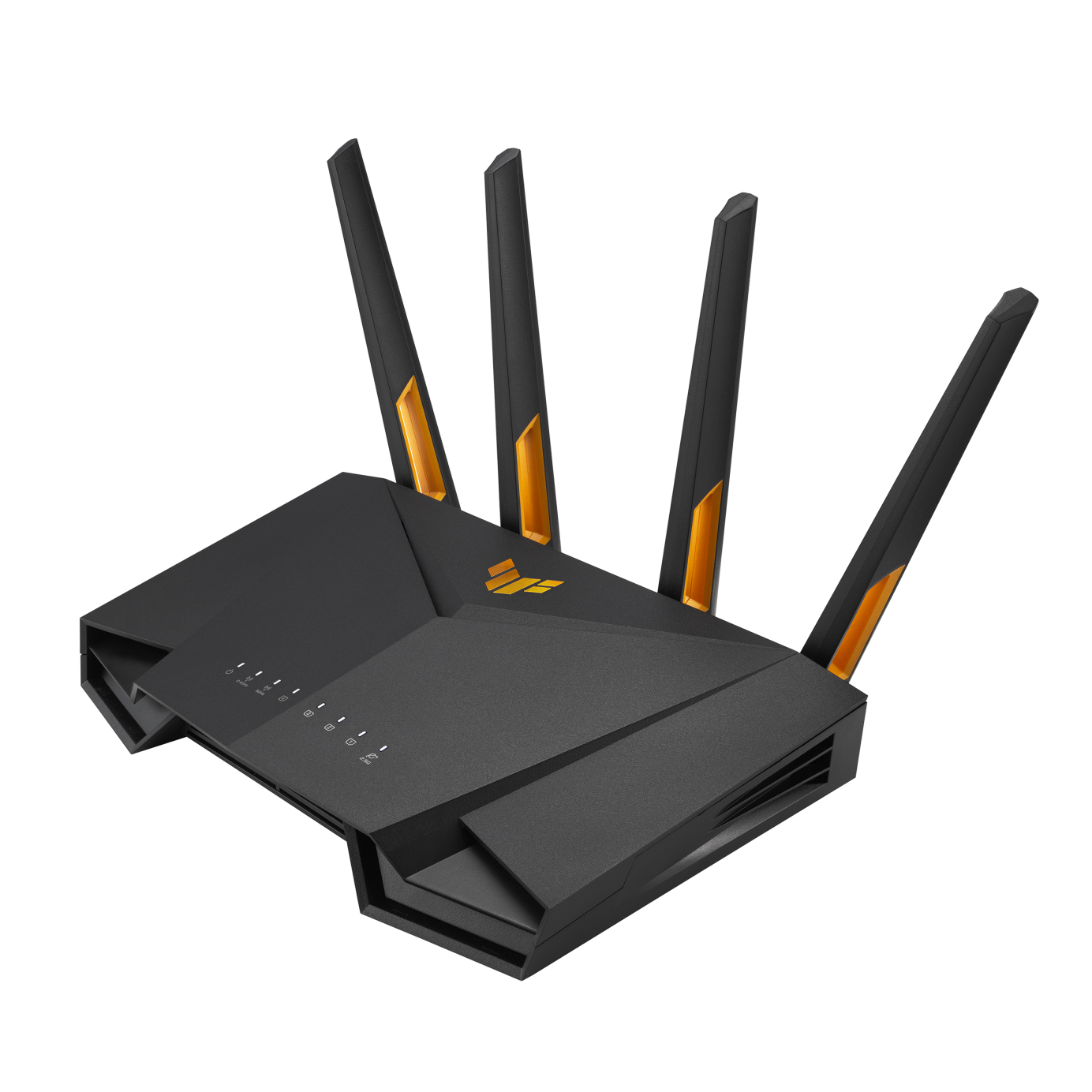

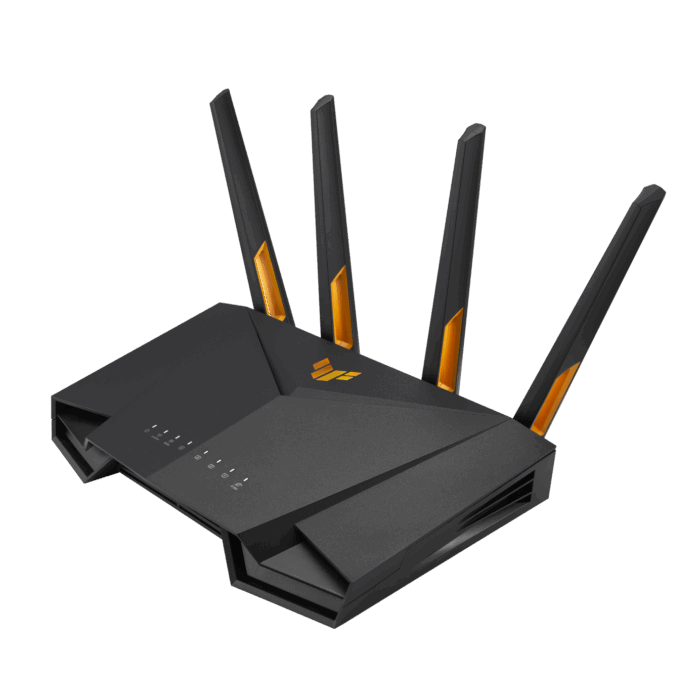

Asus TUF Gaming AX4200 Dual Band WiFi 6 Gaming Router with Mobile Game Mode

R2 149,00 Shipping costs will be calculated and included in your official quotation.

  • Ultrafast WiFi 6 – Enjoy speeds up to 4200 Mbps and 4X network efficiency with OFDMA and 160 MHz channels.
  • True Multi-Gigabit wired speeds – Aggregated 2 Gigabit LAN connections, wired 2.5Gbps port and WiFi 6.
  • Easy Port Forwarding in 3 Steps – Open NAT makes port forwarding simple, eliminating frustrating and complicated manual configuration.
  • ASUS AiMesh Support – Create a flexible, seamless whole-home mesh network with AiMesh-compatible routers.
  • Tested Durability and Stable Operation – TUF Gaming AX4200 is built to be durable and undergoes verified testing to ensure reliable, stable operation.
    SKU: TUF-AX4200 Categories: , Brand:

    Description

    Model
    TUF Gaming AX4200
    Network Standard
    IEEE 802.11a
    IEEE 802.11b
    IEEE 802.11g
    WiFi 4 (802.11n)
    WiFi 5 (802.11ac)
    WiFi 6 (802.11ax)
    IPv4
    IPv6
    Product Segment
    AX4200 ultimate AX performance: 574+3603 Mbps
    WiFi Data Rate
    802.11a : up to 54 Mbps
    802.11b : up to 11 Mbps
    802.11g : up to 54 Mbps
    WiFi 4 (802.11n) : up to 450 Mbps
    WiFi 4 (802.11n) (256QAM) : up to 600 Mbps
    WiFi 5 (802.11ac) : up to 2600 Mbps
    WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
    WiFi 6 (802.11ax) (5GHz) : up to 3603 Mbps
    Antenna
    External antenna x 4
    Transmit / Receive
    2.4GHz 2×2
    5GHz 3×3
    Processor
    2.0 GHz quad-core processor
    Memory
    256 MB Flash
    512 MB RAM
    Boosts Speed
    OFDMA (Orthogonal Frequency Division Multiple Access)
    Beamforming: standard-based and universal
    1024-QAM high data rate
    20/40/80/160 MHz bandwidth
    Operating Frequency
    2.4GHz / 5GHz
    Operating Mode
    Wireless router mode
    Access point mode
    Media bridge mode
    I/O Ports
    RJ45 for 2.5 Gigabits BaseT for WAN x 1,
    RJ45 for Gigabits BaseT for LAN x 4,
    USB 3.2 Gen 1 x 1,
    Buttons
    WPS Button, Reset Button, Power Button
    LED Indicator
    Power x 1
    2.4G x 1
    5G x 1
    LAN x 4
    WAN x 1
    Power Supply
    AC Input : 100V~240V (50~60Hz)
    DC Output : 12 V with max. 2.5 A current
    Package Content
    TUF Gaming AX4200 Dual Band WiFi 6 router
    RJ-45 cable
    Power adapter
    Quick Start Guide
    Warranty card
    Product Weight (g)
    547.4 g
    Product Dimensions
    265 x 178 x 186 mm
    AiMesh
    AiMesh
    • Primary AiMesh Router
    • AiMesh Node
    Game
    Game Boost / Acceleration
    Mobile Game Mode
    OpenNAT (Game Profile)
    Parental Control
    “Allow you to block access to unwanted websites and apps.”
    Safe Browsing
    Customized Internet Schedule
    Guest Network
    “The Guest Network provides Internet connection for guests but restricts access to your local network.”
    • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
    Guest Network Connection Time Limit
    Security
    AiProtection
    WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
    WPS
    DNS-over-TLS
    SSH
    Security Scan
    Firewall
    • Maximum Firewall Keyword Filter : 64
    • Maximum Firewall Network Service Filter : 32
    • Maximum Firewall URL Filter : 64
    AiProtection
    • Router Security Assessment
    • Malicious Site Blocking
    • Two-Way IPS
    • Infected Device Prevention and Blocking
    VPN
    VPN Client L2TP
    VPN Client Open VPN
    VPN Client PPTP
    VPN Client WireGuard
    VPN Server IPSec
    VPN Server Open VPN
    VPN Server PPTP
    VPN Server WireGuard
    VPN Fusion
    Traffic Control
    Adaptive QoS
    • Bandwidth Monitor
    • Bandwidth Limiter
    — Maximum Bandwidth Limiter Rule : 32
    Traditional QoS
    — Maximum Traditional QoS Rule : 32
    Traffic Monitor
    • Real-time Traffic Monitor
    • Wired Traffic Monitor
    • Wireless Traffic Monitor
    Traffic Analyzer
    • Traffic Analysis Period : Daily, Weekly, Monthly
    • Website History
    WAN
    Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
    Dual WAN
    WAN Aggregation
    3G / 4G LTE dongle
    Port forwarding
    • Maximum Port Forwarding Rule : 64
    Port triggering
    • Maximum Port Triggering Rule : 32
    DMZ
    DDNS
    NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
    LAN
    DHCP Server
    IGMP Snooping
    IPTV
    LAN Link Aggregation
    Manually Assign IP Address
    • Maximum Manually Assign IP Address Rule : 64
    Wake on LAN (WOL)
    Wireless
    UTF-8 SSID
    WiFi MAC Address Filter
    • Maximum MAC Filters : 64
    Wireless Scheduler
    Airtime Fairness
    RADIUS Client
    Universal Beamforming
    Explicit Beamforming
    USB application
    File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
    Safely Remove Disk
    AiCloud
    Download Master
    AiDisk
    Media Server
    Time Machine
    Samba Server
    FTP Server
    Shared Folder Privileges
    Administration
    Configuration Backup and Restore
    Diagnosis tools
    Feedback System
    System Log
    New Device Connect Notification
    Login Captcha
    Connection Diagnosis
    Auto Firmware Update
